Solbet Produkty U-Blocks

U-Blocks

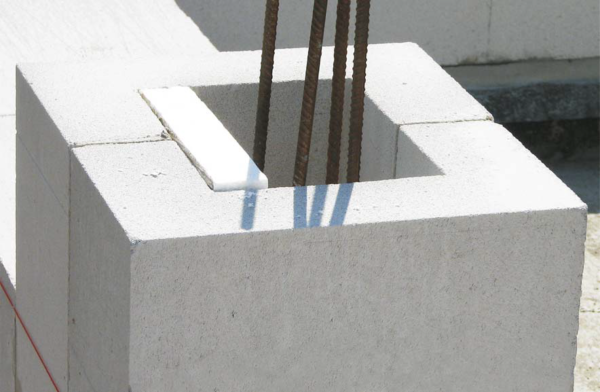

U blocks are ACC elements used as stay-in-place formwork when making reinforced concrete beams, lintels, lowered tie beams or reinforced concrete columns. Reinforced concrete elements are made in U blocks after reinforcement, laying the thermal insulation (if required – e.g. in a single-layer wall) and filling with concrete. U blocks are a great help in making these elements. As long as the concrete bonds, they require mounting support. Diversified width of elements allows to adjust them to the width of the blocks used in the construction of walls.

Special properties

  • Dimensions:
    – height: 249 mm
    – length: 499 mm
    – width: 150, 175, 200, 240, 300, 365, 420 mm
  • Density classes: 0.4 and 0.5

  RANGE OF SOLBET U-BLOCKS


NameAverage density [kg/m3]Thickness [mm]
  150175200240300365420
PP2-0,4400 x xxxx
PP2-0,5500x x

U-BLOCKS


Width [mm]Height [mm]Length [mm]RangeWeight of
1 piece
[kg]
Number on the palette
[pcs]
Palette weight
[kg]
150





249





499

PP2-0,58,3548410
175PP2-0,48,8050450
200PP2-0,59,2550470
240PP2-0,49,9540410
300PP2-0,410,6530330
365PP2-0,413,4724340
420PP2-0,414,5220310

Tolerance for lenght and width dimensions: ± 1.5 mm, height: ± 1.0 mm. Autoclaved aereted concrete is available on non-returnable pallets 120 x 100 cm.
